{"product":{"productId":"agid.21078","price":1.37,"name":"MAGNETE GREZZO DISCO MAGNETICO, NDFEBNICHELATO, D=10 ±0,1"},"currency":"EUR"}

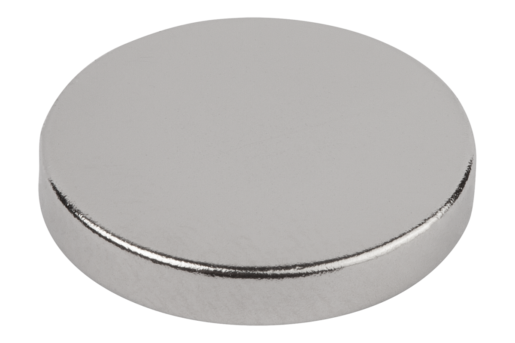

Magnete grezzo
Disco magnetico
NDFEB
nichelato
Unità di vendita
1,37 €
Aggiunto al carrello
Abbreviazione denominazione
Magnete grezzo
Versione 1
Disco magnetico
Materiale
Corpo base
NDFEB
Superficie
corpo base
nichelato
D=Diametro esterno
10 ±0,1
Forza di adesione
N
15
H
3 ±0,1
Temperatura*
max. °C
80
Descrizione
Materiale
NdFeB N35 (neodymium).
Versione
nickel-plated.
Nota
The NdFeB raw magnets are an unshielded magnetic system.
Neodymium-iron-boron magnets have an extremely high magnetic force. Please handle these raw magnets with particular care.
• High crush hazard: Larger magnets in particular can cause considerable crushing to fingers or hands when moved together.
• Brittle material: Neodymium-iron-boron is a very hard but brittle material. The magnets can easily break or splinter by impacts, dropping or uncontrolled collision.
• Sharp-edged splinters: Sharp-edged, partially splinter fragments often occur when broken. It is recommended to wear safety glasses when handling.
• Danger when snapping together: If two magnets collide without slowing, explosive splintering can occur due to the brittleness of the material.
Neodymium-iron-boron magnets have an extremely high magnetic force. Please handle these raw magnets with particular care.
• High crush hazard: Larger magnets in particular can cause considerable crushing to fingers or hands when moved together.
• Brittle material: Neodymium-iron-boron is a very hard but brittle material. The magnets can easily break or splinter by impacts, dropping or uncontrolled collision.
• Sharp-edged splinters: Sharp-edged, partially splinter fragments often occur when broken. It is recommended to wear safety glasses when handling.
• Danger when snapping together: If two magnets collide without slowing, explosive splintering can occur due to the brittleness of the material.
Range di temperatura
max. 80°C.
Montaggio
The magnets can be mounted by press-fit or gluing.
Nota disegno
1) magnetic face
Nota importante sul download dei modelli CAD
Per poter scaricare i nostri modelli CAD, occorre effettuare il login. Se non è stato ancora creato un account, si prega di registrarsi alla voce "Il mio account" (lato destro dello schermo) e di seguire le istruzioni.

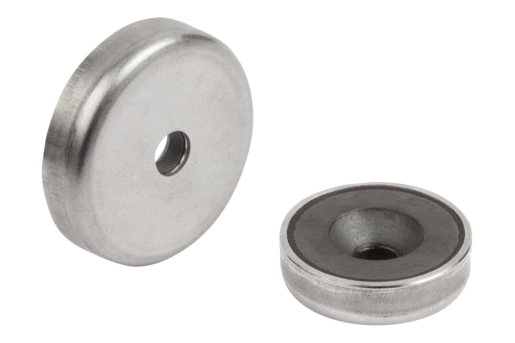

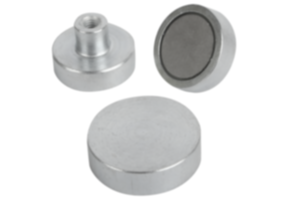

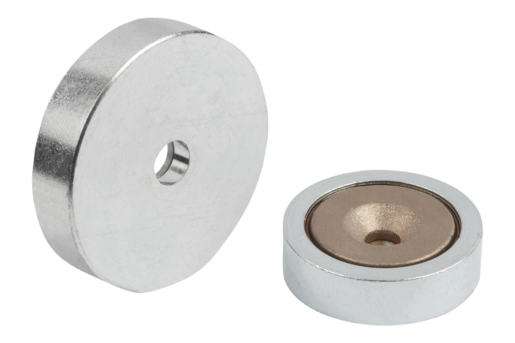

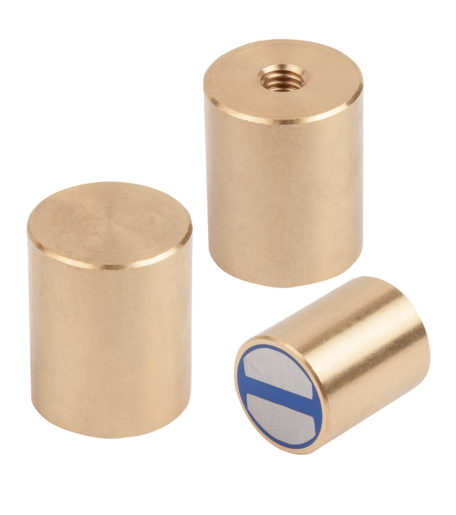

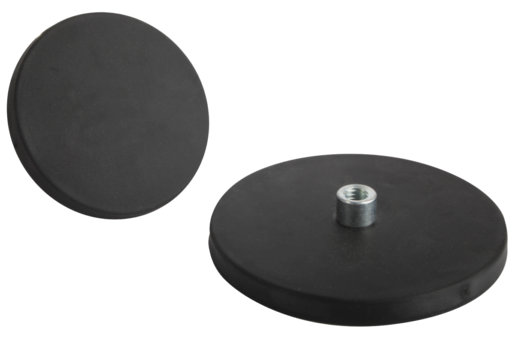

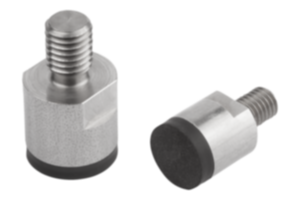

Altri clienti hanno acquistato anche
