Material
Carbon steel.
Version
Main body oxidised.
Contact faces hardened and ground.
Contact faces hardened and ground.
Mostra di più
Mostra di meno
Descrizione
Material
Carbon steel.
Version
Main body oxidised.
Contact faces hardened and ground.
Contact faces hardened and ground.
Note

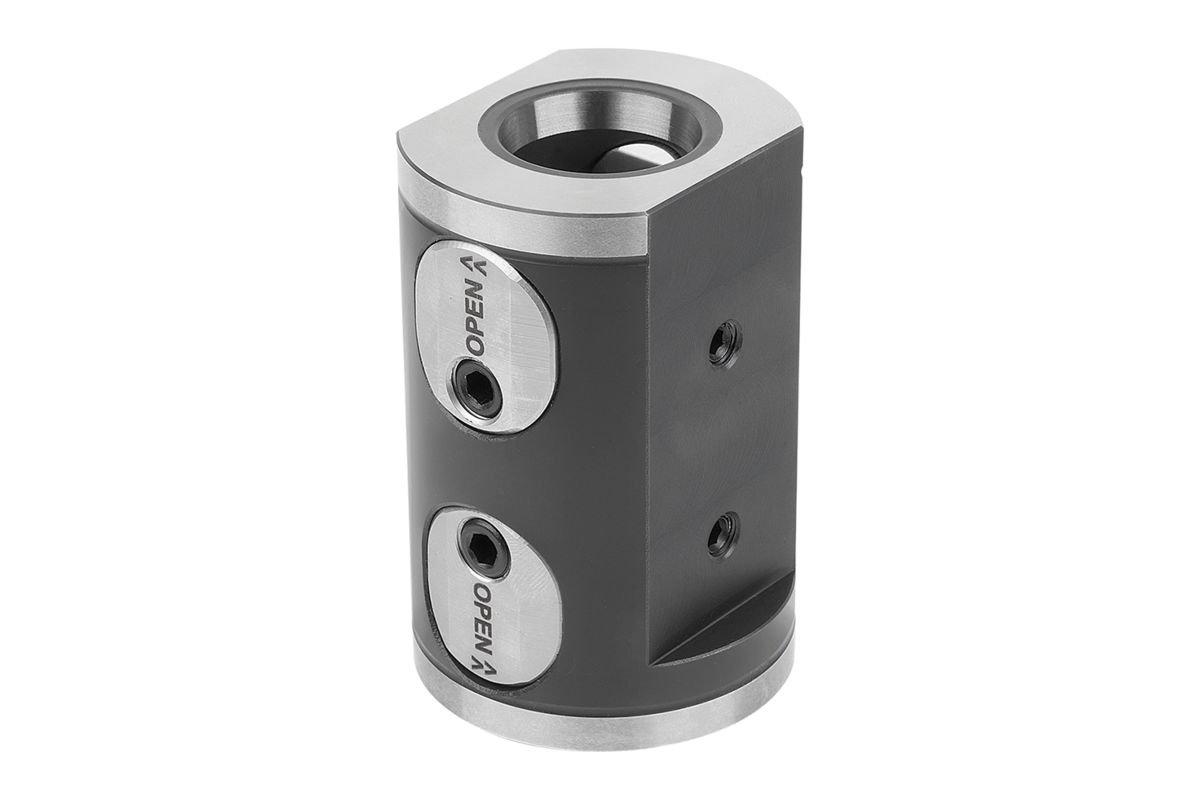

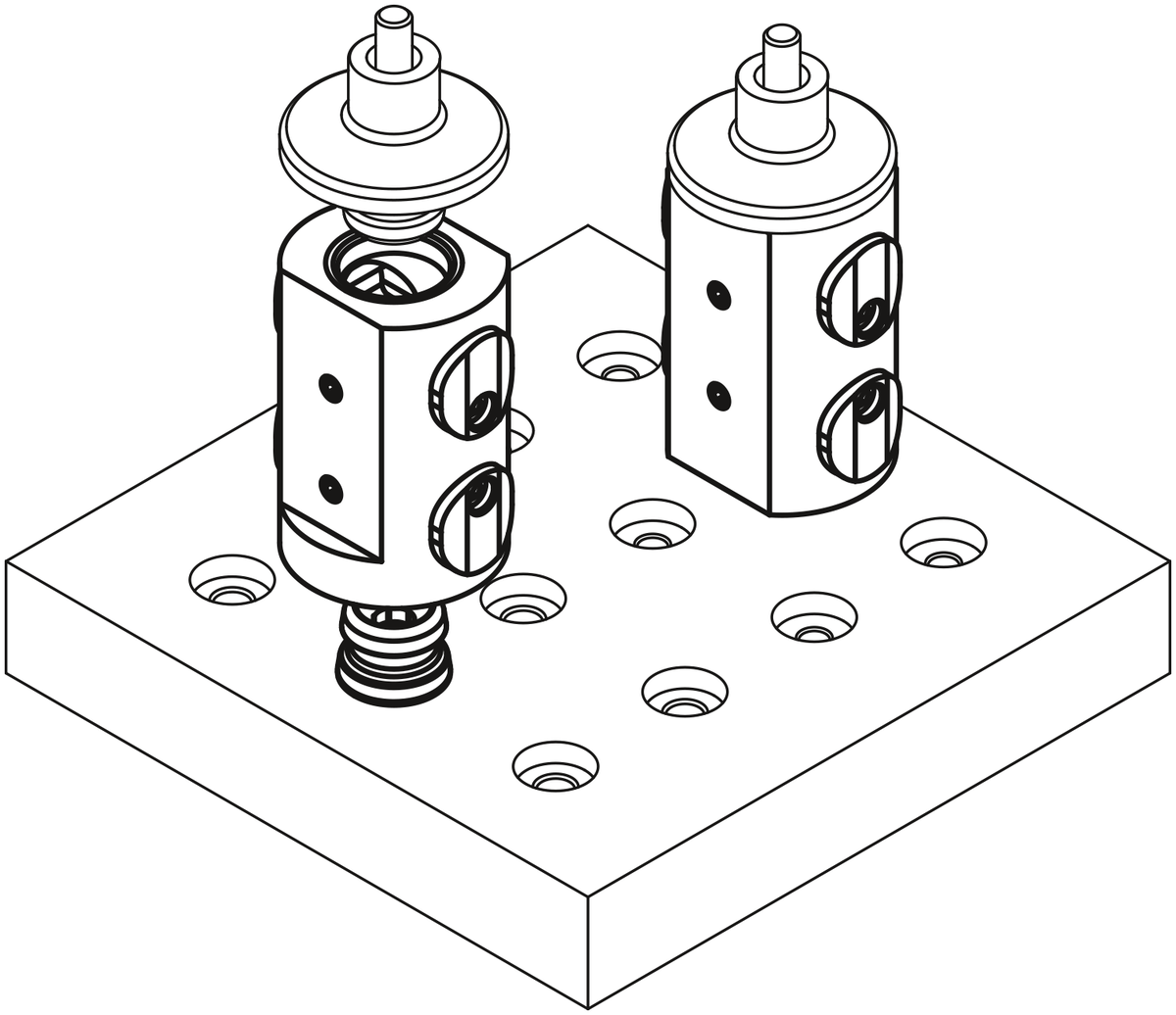

The UNILOCK 5-axis double clamp basic modules can be adapted directly to machine tables with grid holes or T-slots, as well as grid hole subplates.

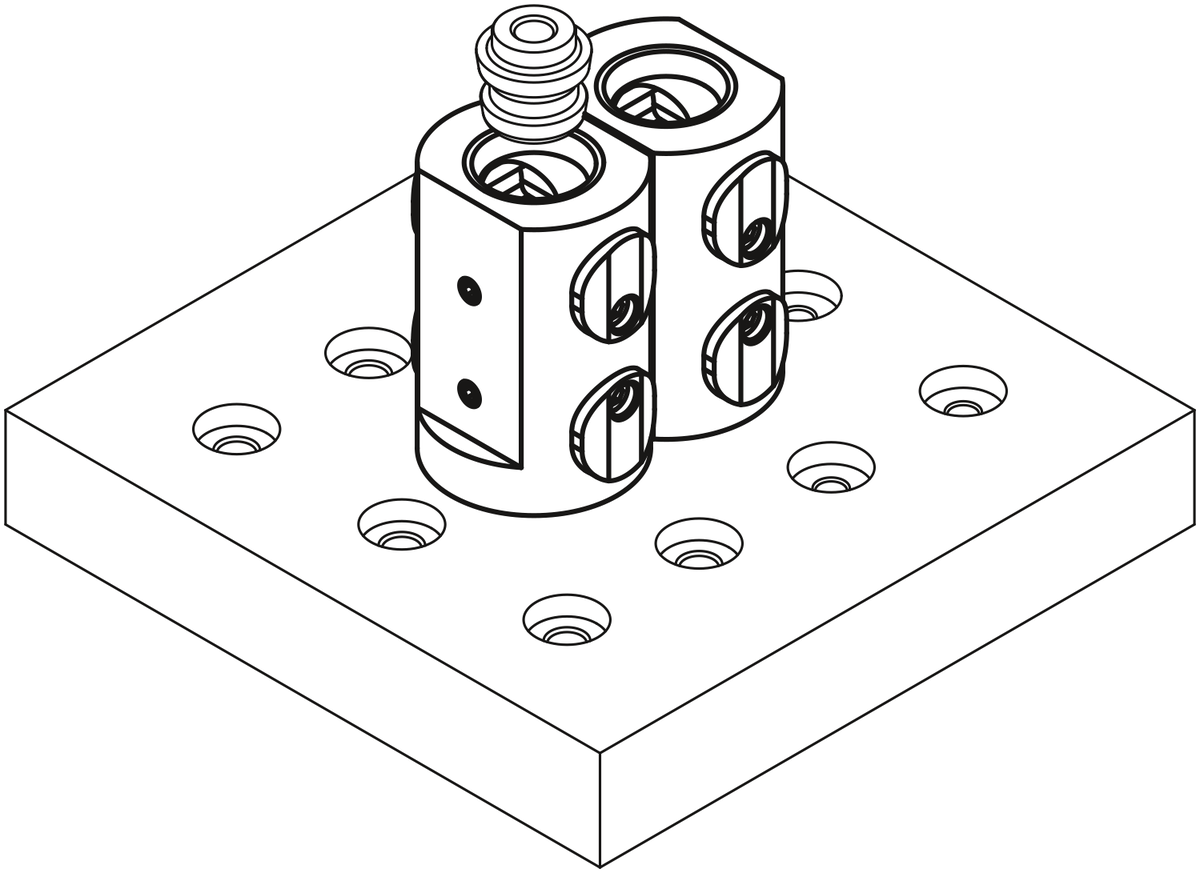

The narrow design of the basic module enables it to be used on grid spacings from 40 mm.
The following clamping forces are possible with the UNILOCK clamping pin in conjunction with M8, M10 fastening screws:
- Clamping force (M8) 15,000 N
- Clamping force (M10) 25,000 N
Clamping force with DIN EN ISO 4762 -12.9 cap screws
Clamping pins may only be clamped in conjunction with a mounted interchangeable unit in the clamping module.
The narrow design of the basic module enables it to be used on grid spacings from 40 mm.
The following clamping forces are possible with the UNILOCK clamping pin in conjunction with M8, M10 fastening screws:
- Clamping force (M8) 15,000 N
- Clamping force (M10) 25,000 N
Clamping force with DIN EN ISO 4762 -12.9 cap screws
Clamping pins may only be clamped in conjunction with a mounted interchangeable unit in the clamping module.
